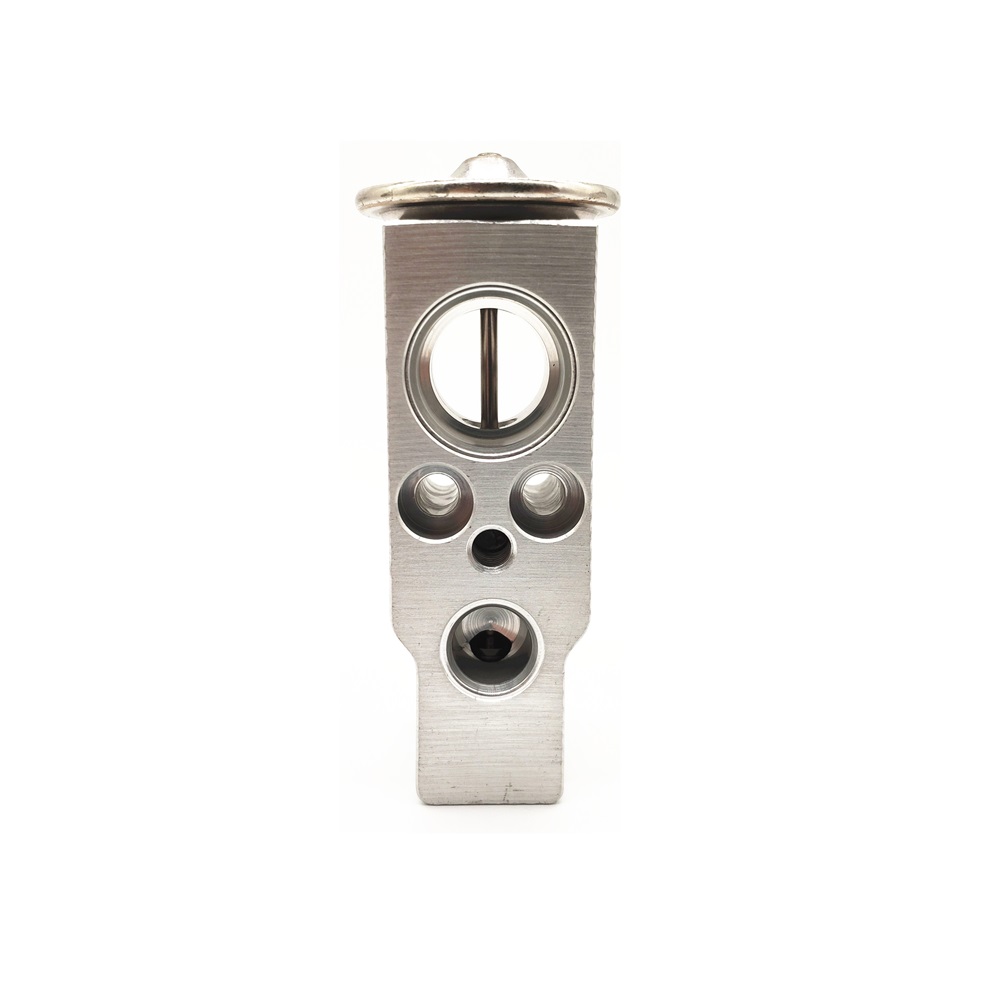

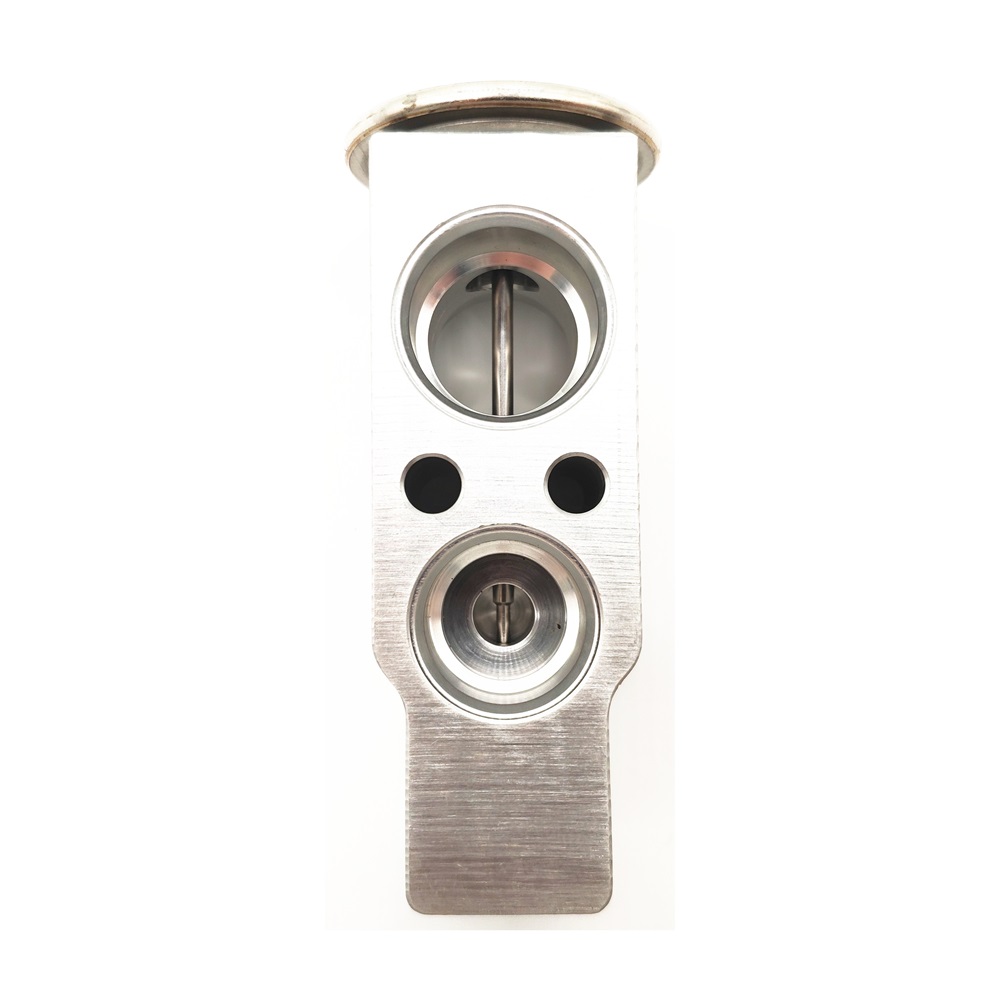

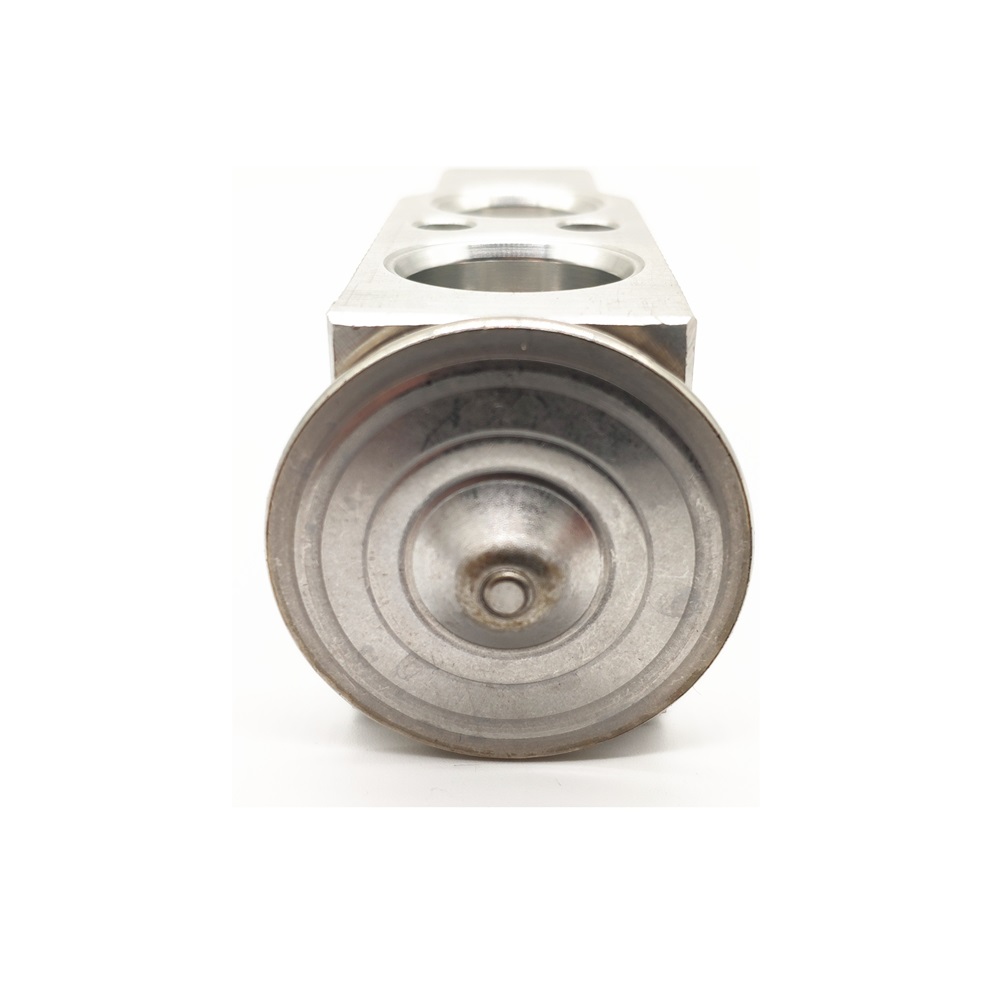

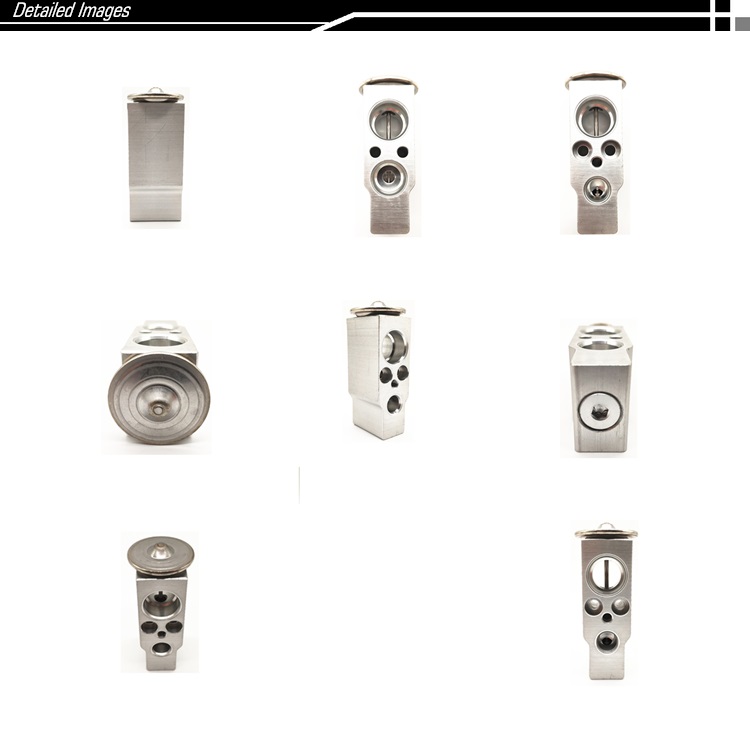

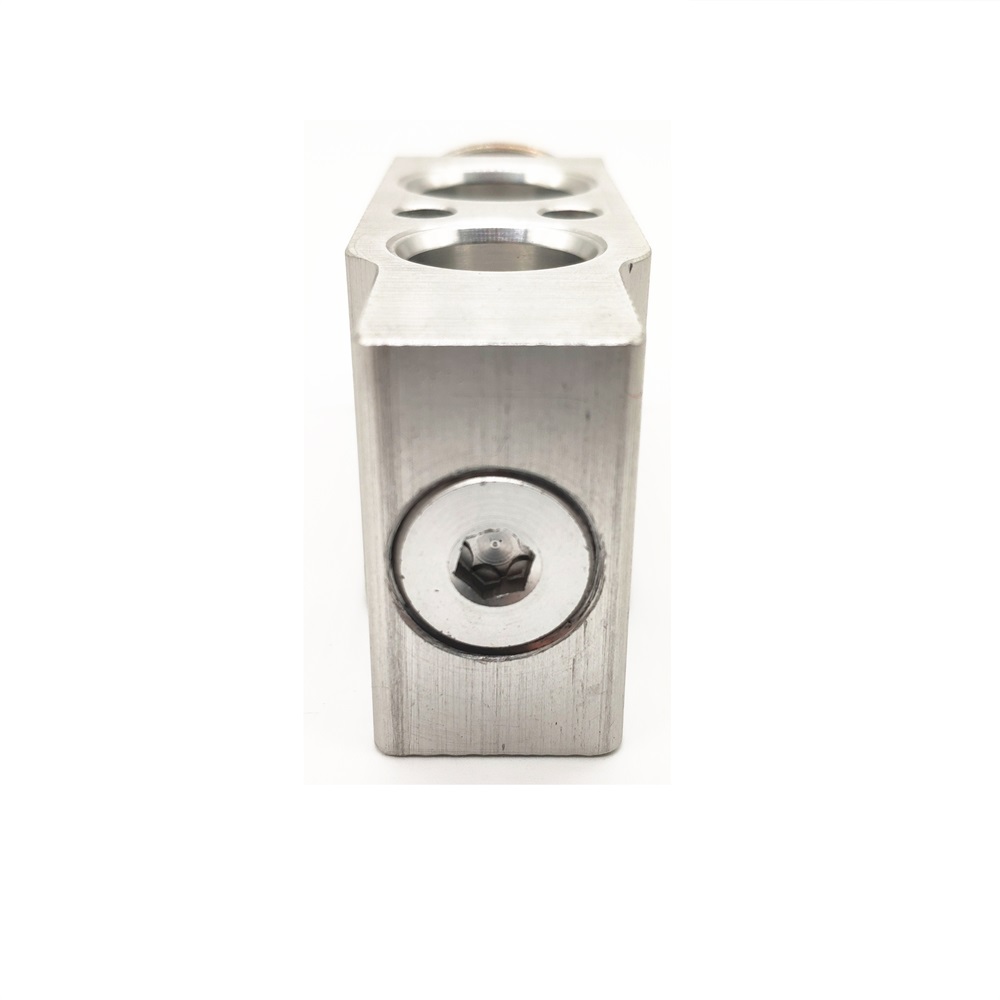

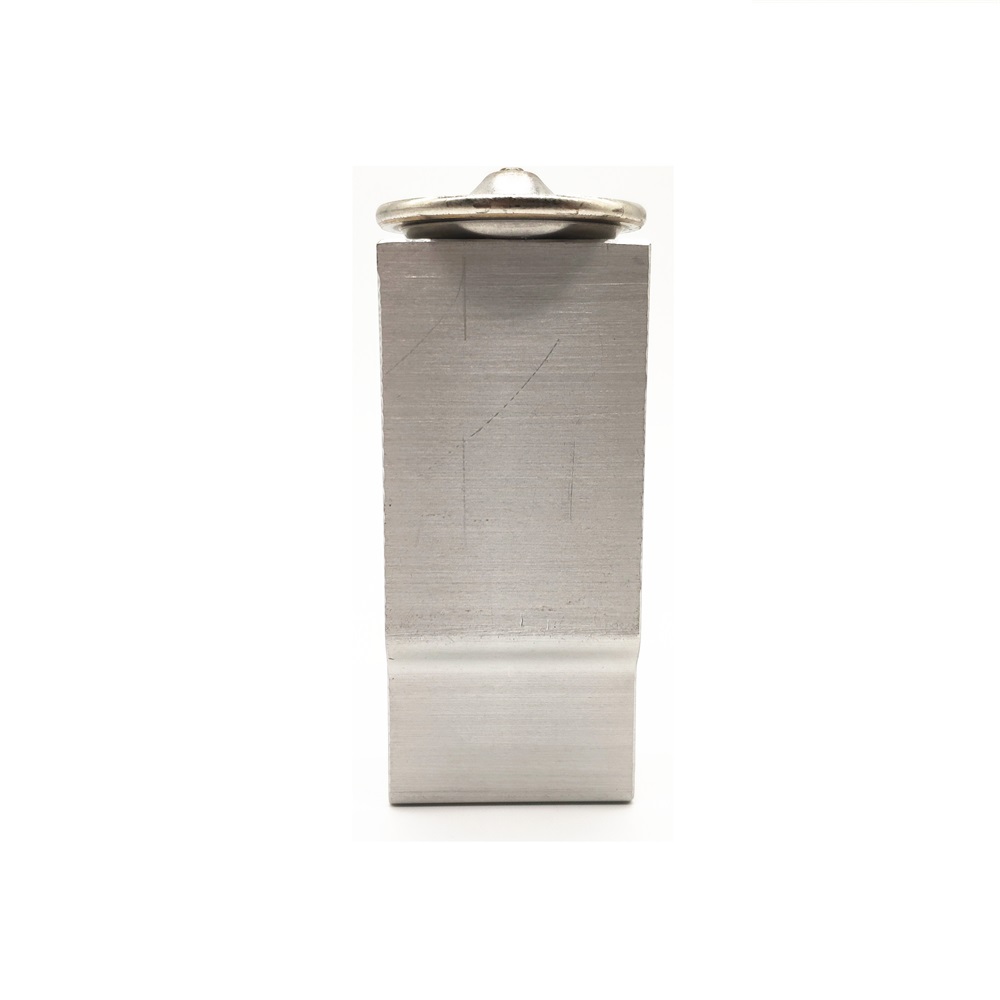

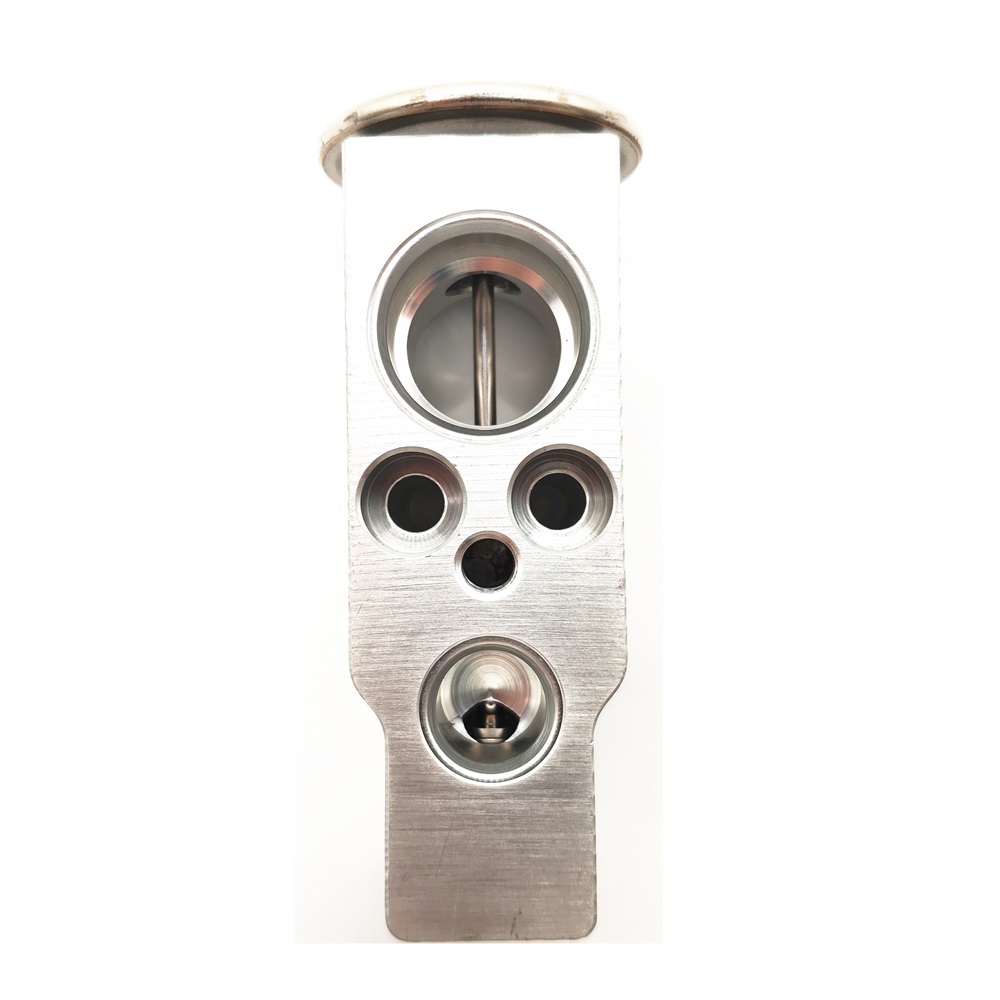

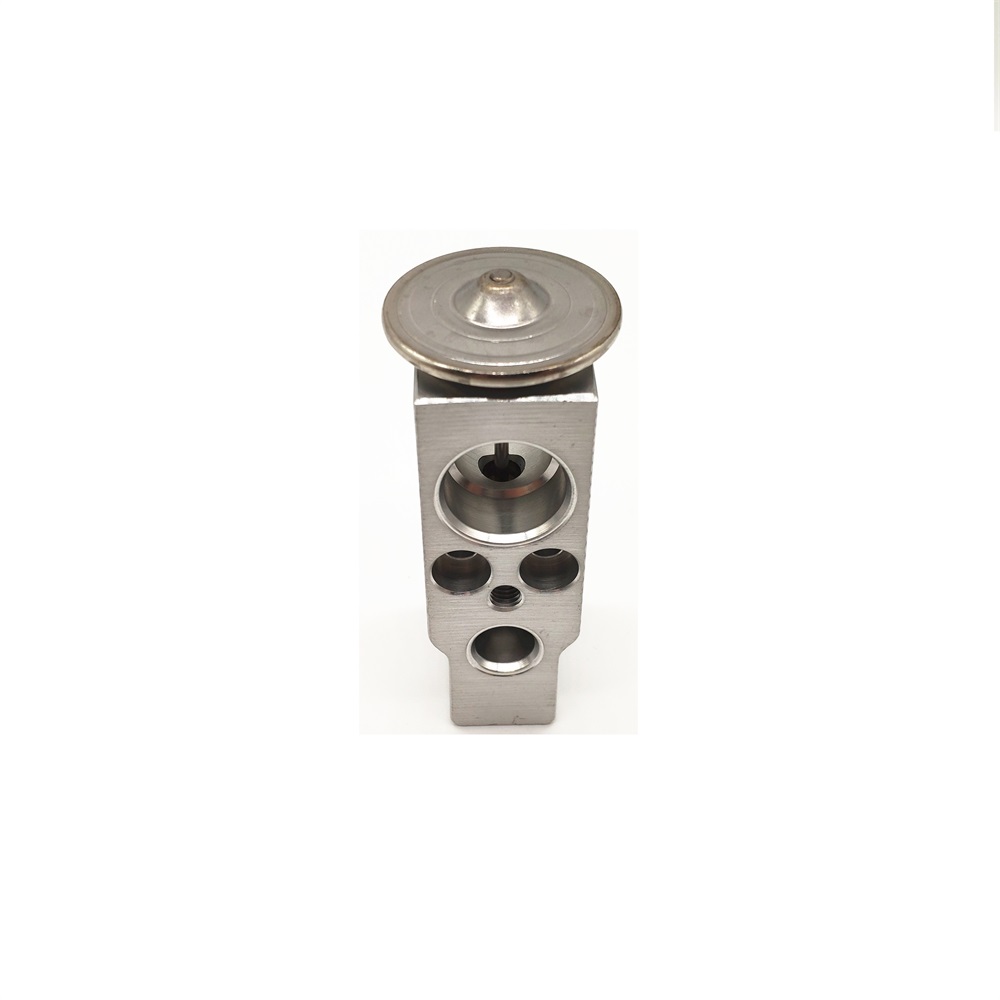

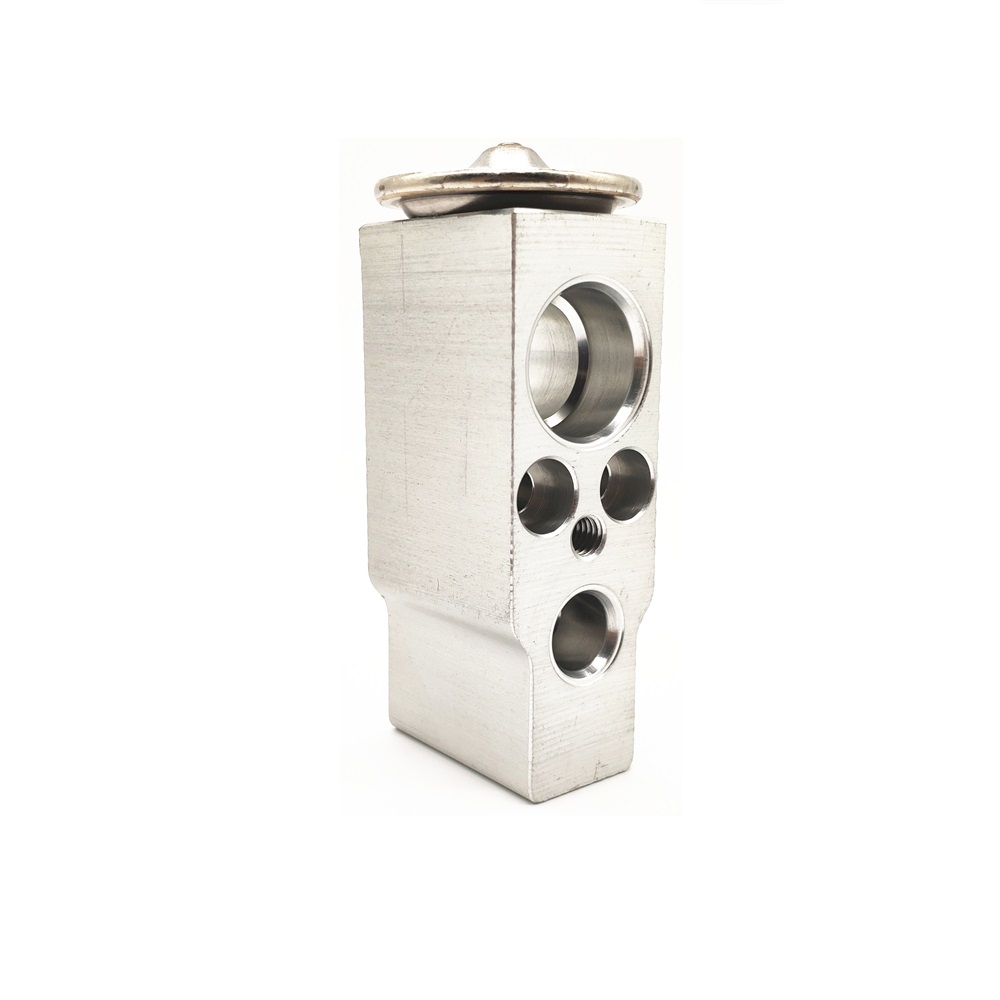

Expansion Valve BE-EX-129555
- Product description: 31-31295 OMEGA AN51515-A0400 KOMATSU 51515A0250

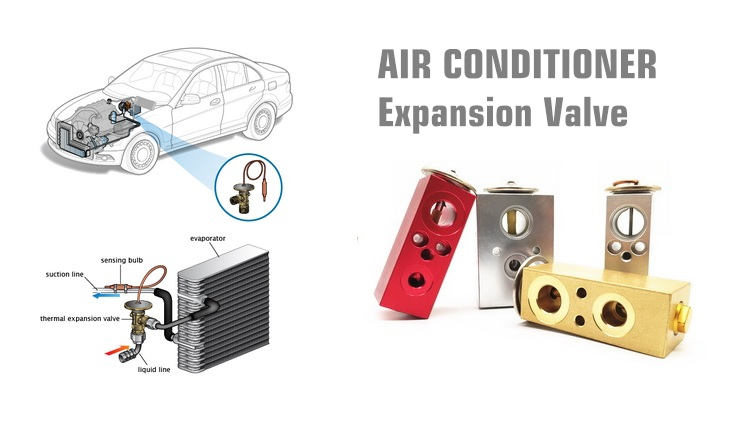

The expansion valve acts as a refrigerant metering device that creates a temperature/pressure decrease. This device also divides the system into two zones; high pressure and low-pressure. The most common block valve failure is due to the loss of gas pressure inside the Power Head.

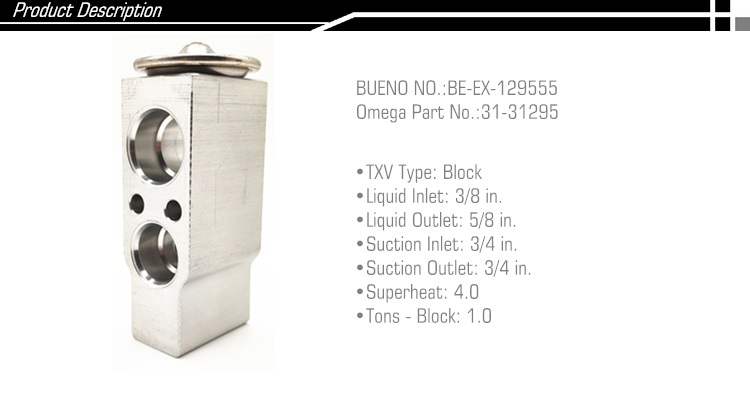

PRODUCT SPECIFICATIONS:
•Omega Part No.: 31-31295
•OEM Part No.: AN51515-A0400
•TXV Type: Block
•Liquid Inlet: 3/8 in.
•Liquid Outlet: 5/8 in.
•Suction Inlet: 3/4 in.
•Suction Outlet: 3/4 in.
•Superheat: 4.0
•Tons - Block: 1.0
