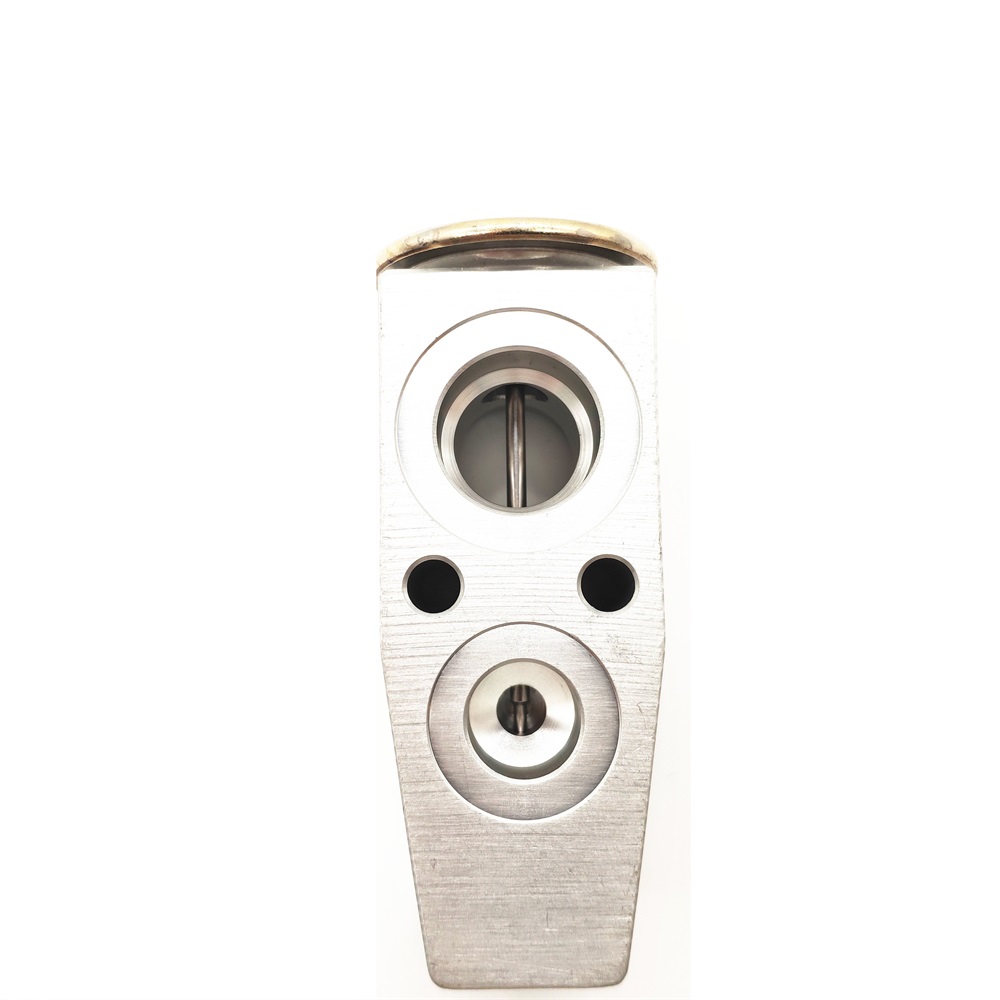

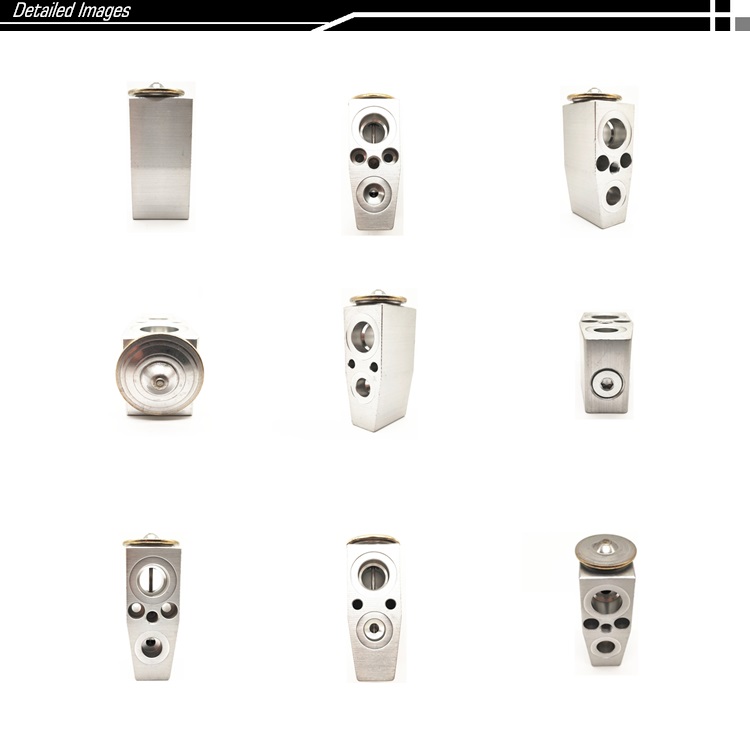

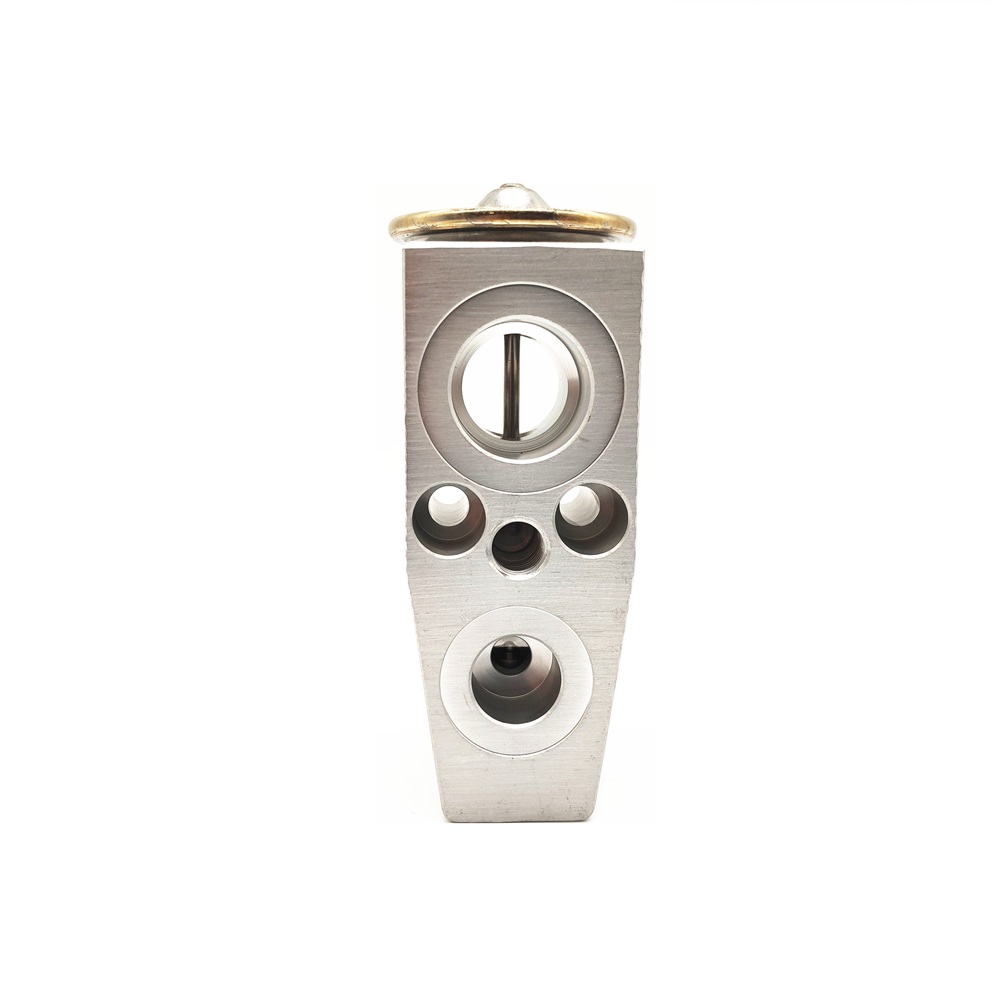

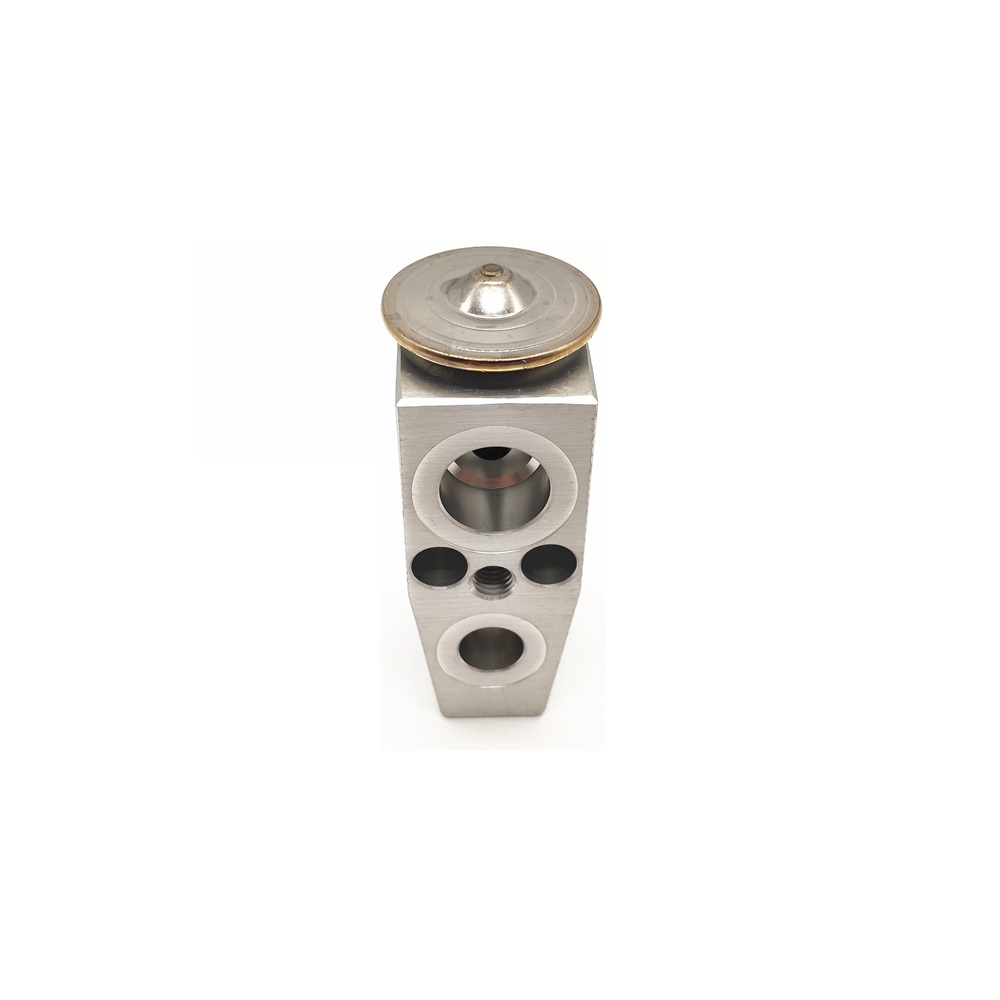

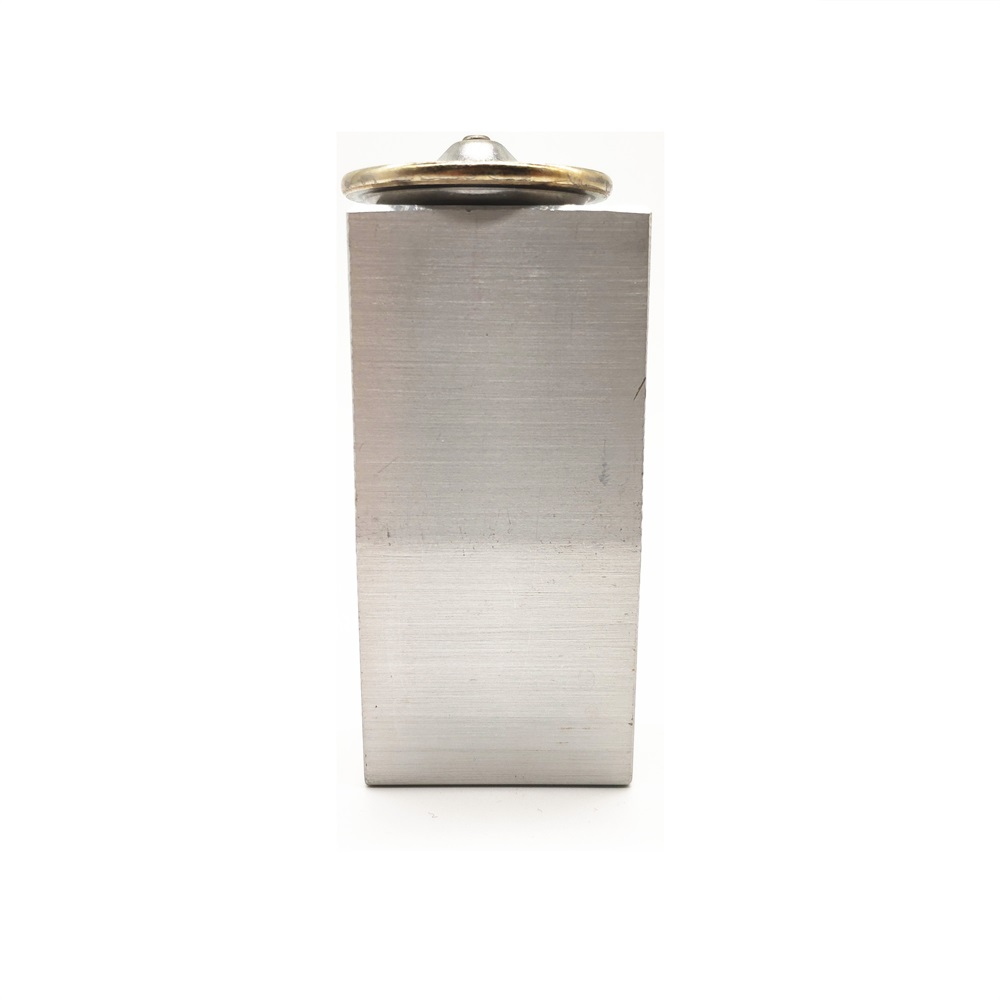

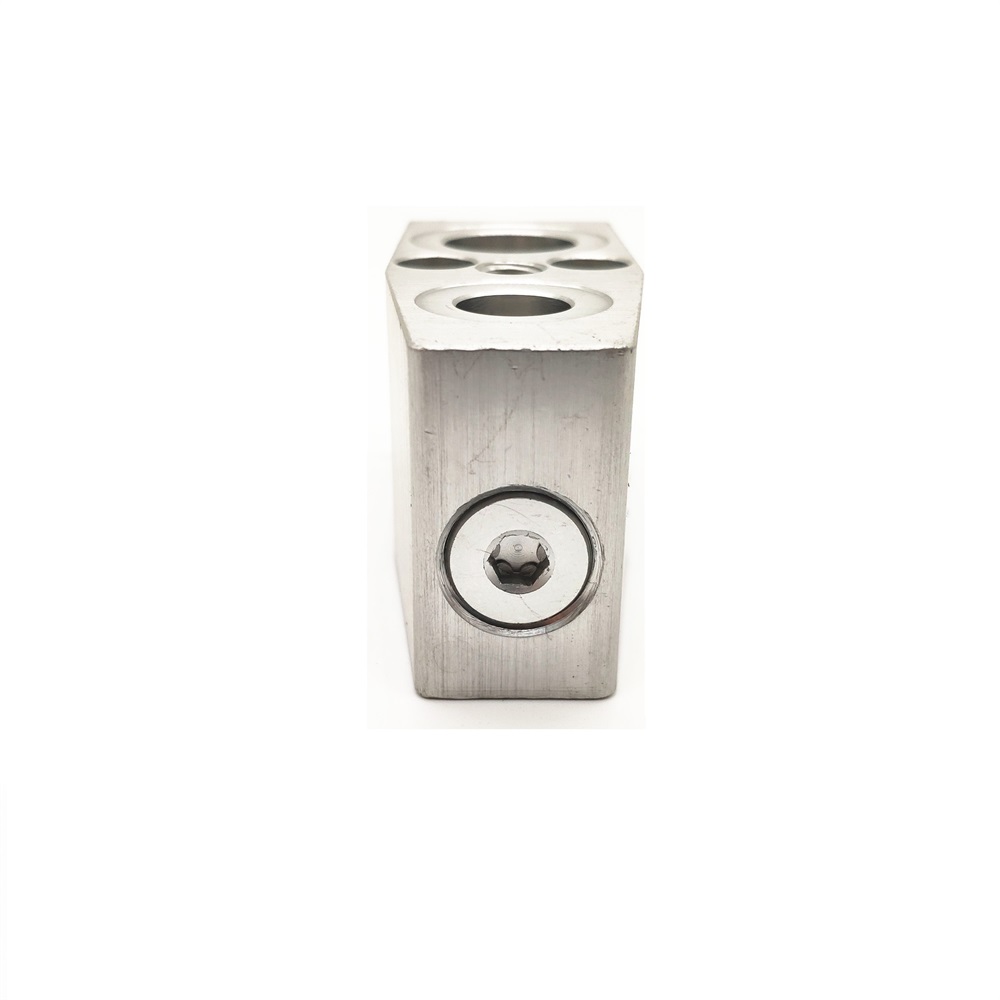

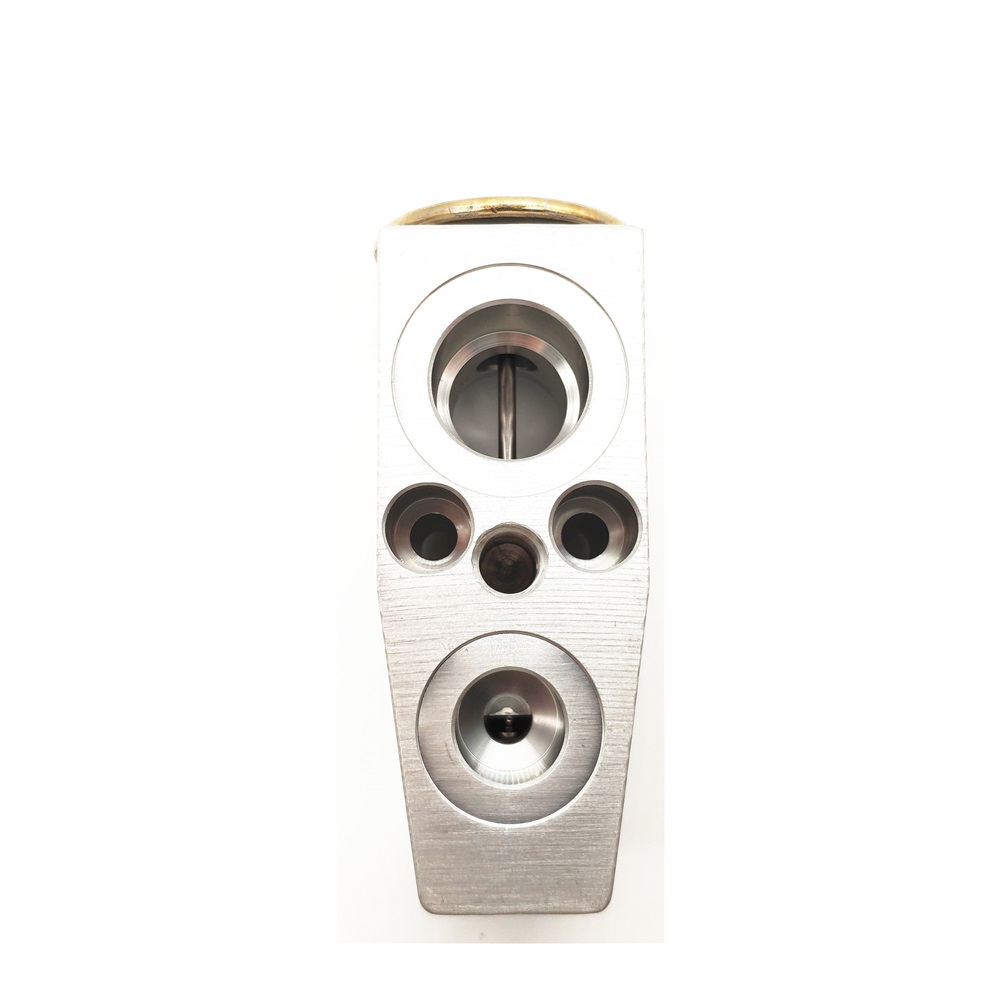

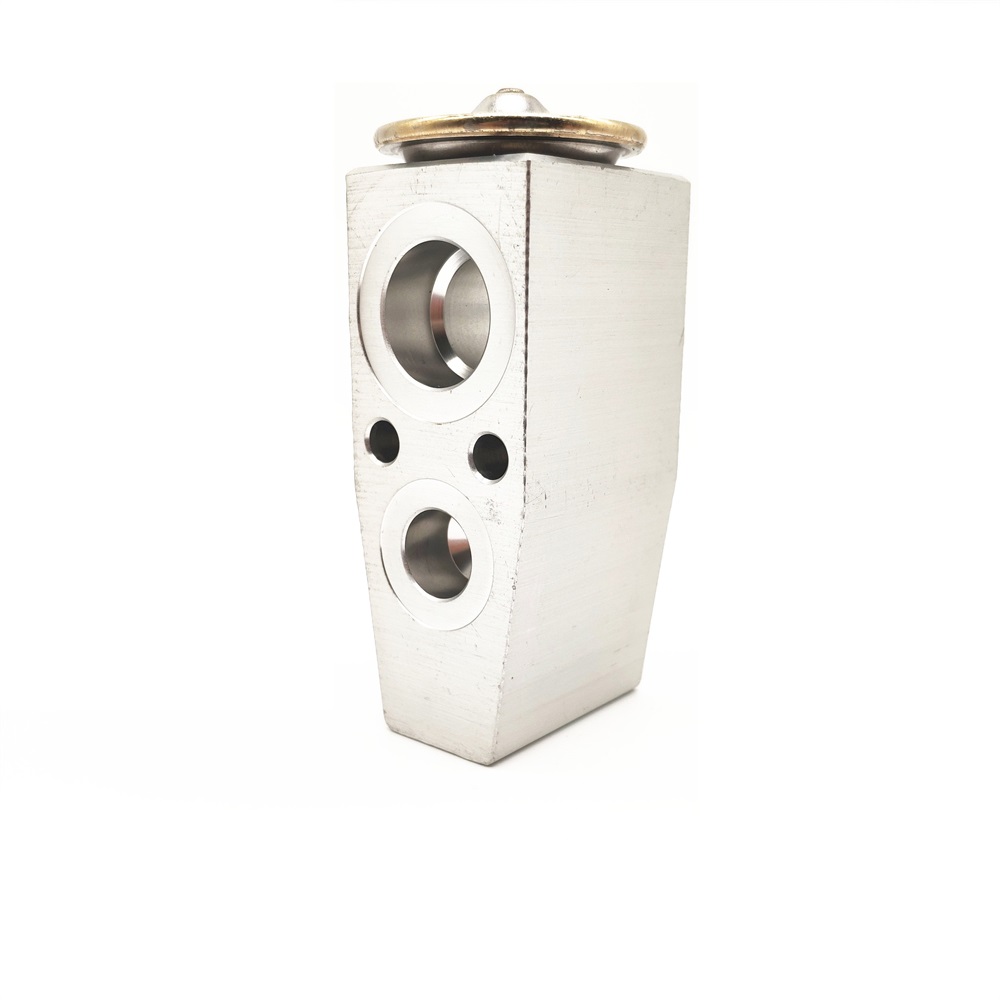

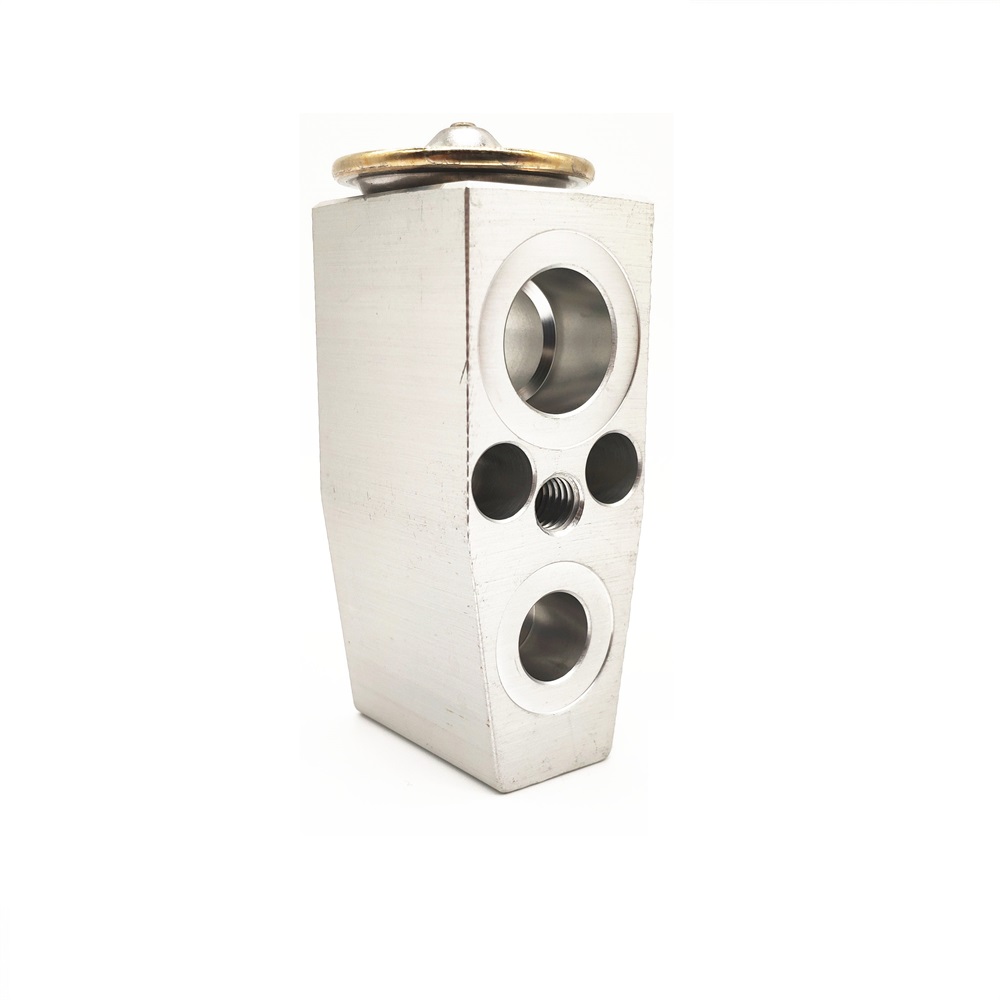

Expansion Valve BE-EX-129561

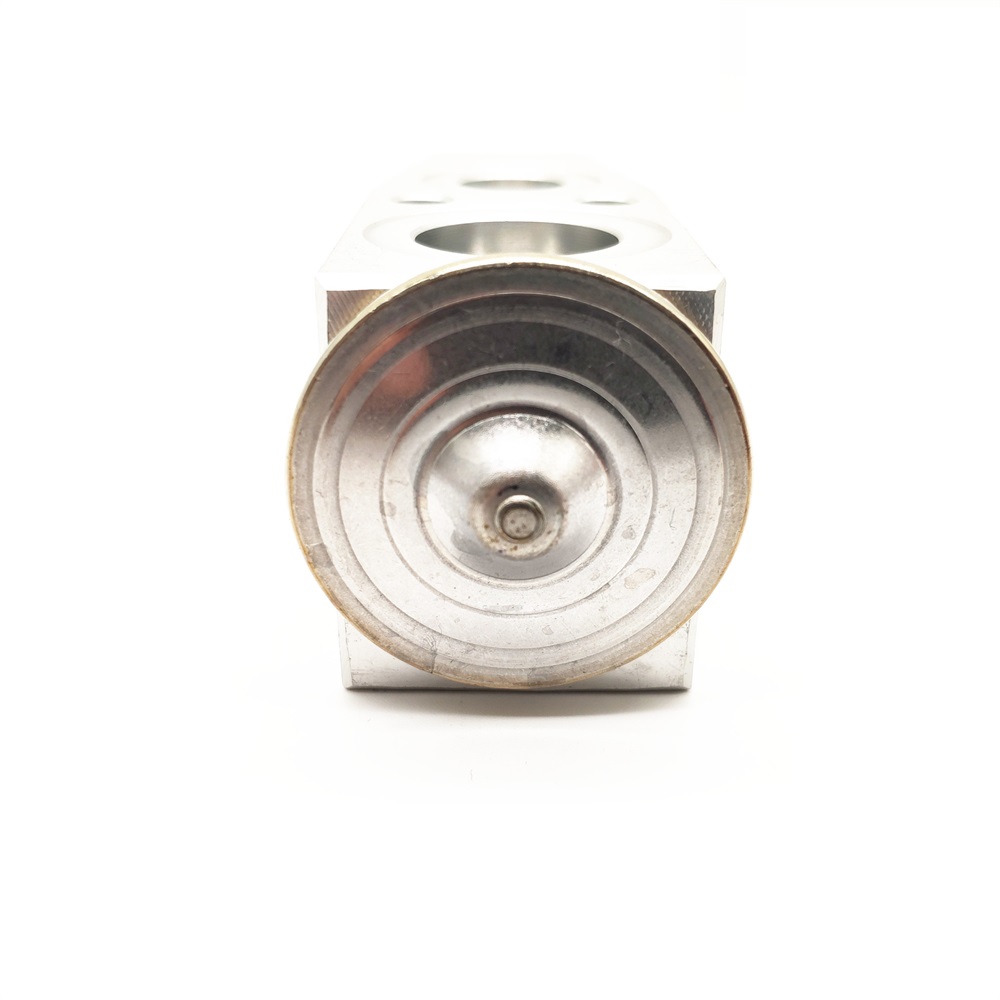

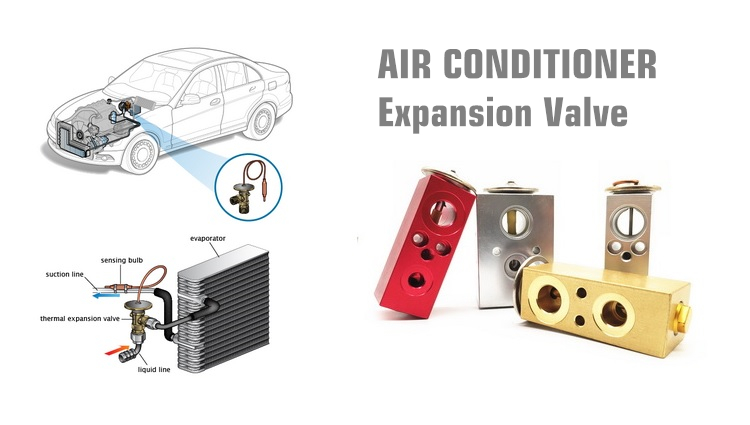

The expansion valve acts as a refrigerant metering device that creates a temperature/pressure decrease. This device also divides the system into two zones; high pressure and low-pressure.  The most common block valve failure is due to the loss of gas pressure inside the Power Head.

PRODUCT SPECIFICATIONS:

Kysor Part No.: 1812013

Bergstrom Part No.: 1001404629

Freightliner/Alliance Part No.: 308097

Freightliner OEM No.: VCC T1000898P

MEI/Airsource Part No.: 1634

MEI/Truck Air Part No.: 12-0627A

Omega Part No.: 31-31334

Red Dot AF Part No.: 71R8380

Red Dot OE Part No.: RD-5-9513-0P

Inlet: No. 8

Outlet: No. 8

Evaporator Inlet Size: No. 8

Evaporator Outlet Size: No. 12

Liquid Inlet from Cond: No. 8

Liquid Outlet to Evap: No. 8

Suction Inlet from Evap: No. 12

Suction Outlet to Comp: No. 12

Refrigerant Type: R12/R134a

Notes: Flange mount

Additional Notes: Sealing Washer type

Tonnage: 1 Ton

Expansion Valve Type: Block Type

Package Quantity: 1

Unit of Measure: EA

APPLICATIONS:

Manufacturer: Freightliner • Year: 2008-2015 • Make: Cascadia (incl. Evolution) • Model: All models • OEM No.: VCCT1000898P

Freightliner All Models T1000044L
